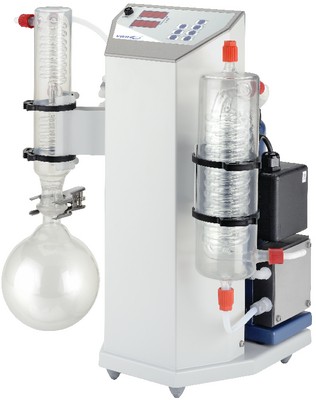

Vacuum system for evaporation and solvent recovery, VP 10 Autovac
The self-regulated vacuum system VP 10 Autovac is especially suitable for vacuum distillation. The pump system provides optimal and trouble free solvent stripping and creates a fully-automatic distillation process without giving any attention to fraction quantities, manual adjustment or continuous regulation. The outstanding design of the VP 10 Autovac utilises solvent flow to automatically regulate the diaphragm pump vacuum level.

After reaching the operating pressure, the chemical resistant system VP 10 Autovac automatically moderates vacuum for each solvent group and distills any solvent/volume mixture without composition knowledge. This is done without interruption despite the different fractions. These are collected together on the pressure side in the emission condenser. The VP 10 Autovac operates without expensive controller technology by directly implementing the physical principles of the condensation process. The solvent itself provides the information for the automatic pressure control.

All wetted parts inside the integrated diaphragm pump are made from high quality PTFE, PEEK, PP materials and clear plastic coated glassware to be able to handle acidic or basic solvents and aggressive solvent vapours. The product is quickly separated without loss in a single cycle of evaporation due to a condensation process at the optimal boiling point.

  • Automatic distillation
  • Collection flask at atmosphere pressure
  • Easy connection to rotary evaporators
  • The solvent recovery system of the VP 10 Autovac reduces the emissions and is environmentally friendly

Description Pk VWR Catalog Number Price Quantity

Vacuum system for evaporation and solvent recovery, Autovac VP 10 1 181-0311 £3,100.00
