General Specifications:
• Housing: PE/PC (GF10)
• Thermostatic control: Insulated lower part (sample compartment)
(insulation thickness 40 mm)
Option: freezer packs (200x10x8 mm) Option: compressor cooling
(12V/115V/230V)
• Control: Microprocessor control, foil keyboard, back lit four-line
LC-display
• Data logger: Nonvolatile data memory; storage of sampling and
malfunction data like sample
extractions, bottle changes, messages, external signals
• Programming: 6 user programs (can be edited freely)
• Program start options: Immediately; at a certain time; by an external
signal
• Program stop options: End of sampling program after one program run;
continuous operation
• Pause mode: Interruption of program run at any time
• Overfilling protection: Adjustable from 1–999 samples/bottles
• Interval setting: 1 min. to 99 h 59 min. in steps of 1 minute
• Pulse setting: 1 to 255 pulses/sample
• Manual sample extraction: Possible at any time without interrupting
the current program run
• Program protection: Up to 5 years after voltage loss
• Interface: RS 232
• Communication: Modem GSM communication: Optional (in combination with
PC software)
• Languages: Multi-language, selectable
• Signal inputs:
- 1 x analogue: 4-20 mA, optional 0-20 mA, minimum voltage 3,3 V
(optocoupler)
- 5 x digital (flow, event, 3 inputs can be programmed freely) Signal
outputs status messages: max. 8 digital outputs, depending on device
version; freely programmable
• Sampling method:
- Vacuum system 20-350 ml
- Vacuum VAR (variable) system 20-350 ml
• Single sample volume accuracy: < 2,8 %
• Suction height: max. 6,5 m (at 1013h Pa)
• Pumping speed: >0,5 m/s at suction height up to at least 5 m (at
1013h Pa);
pump capacity can be adjusted electronically
• Suction hose: PVC, L=5 m, ID=9 mm (ID 16 mm at flow-proportional
option).
Max. hose length 30 m
• Sampling modes: Time-related, flow-dependent, event- related. (Option:
flow-proportional)
Manual sample extraction.
• Bottle variants: 24 x 1 l PE bottle (standard), 13 l composite
container, 25 l composite container,
4 x 5 l PE bottle, 16 x 1 l bottle with freezer packs
• Overall dimensions: (Hxwxd) 787x510x468 mm; 1030x548x470 mm with
compressor cooling
• Weight: 22,4 kg 24x1 l 34 kg 24x1 l with compressor cooling.
(Device incl. empty bottles and battery but no suction hose)
• Power supply: 12 V/ 10 Ah lead storage battery (maintenance-free, leak
proof);
115V or 230V operation by means of battery charger in buffer mode. Range
11-14V;
power consumption max. 30 W
• Power requirement number of samples: Approx. 2000 sample extractions
per battery charge
[determined at 20° C ambient temp., 1,5 m suction height, 1 min.
sampling interval] incl. distributor
advance
• Ambient temperature: 0 – 45° C
• Sample temperature: 0 – 40° C
• Standards: Device meets ISO 5667 standard
• Wetted materials: PVC, Silicone, PS, PE
Optional Accessoires:
• Battery charger IP 20 or IP 65
• Strainer basket
• Freezer packs
• Replacement bottles
• Folding transport trolley
• Isobox with passive cooling (freezer packs/ice) or with active cooling (compressor cooling)
• 12V / 85 Ah lead storage battery for Isobox with active cooling Isobox to be used as transport
box with cover
- GSM modem
- PC communication software
Delivery Contents:

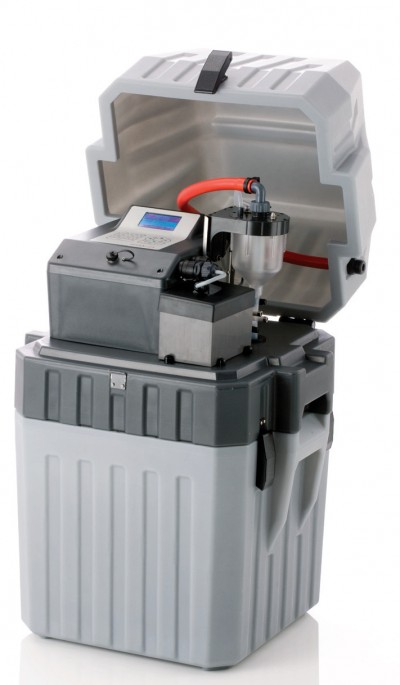

• Portable sampler with plastic housing, vacuum dosing system with
plastic metering vessel 20 - 350 ml, microprocessor control,
batteryoperated 12V/10Ah.
• incl. 5 m suction hose with screw connection and sinker weight
• 24 x 1 L PE bottle.
